Product Overview

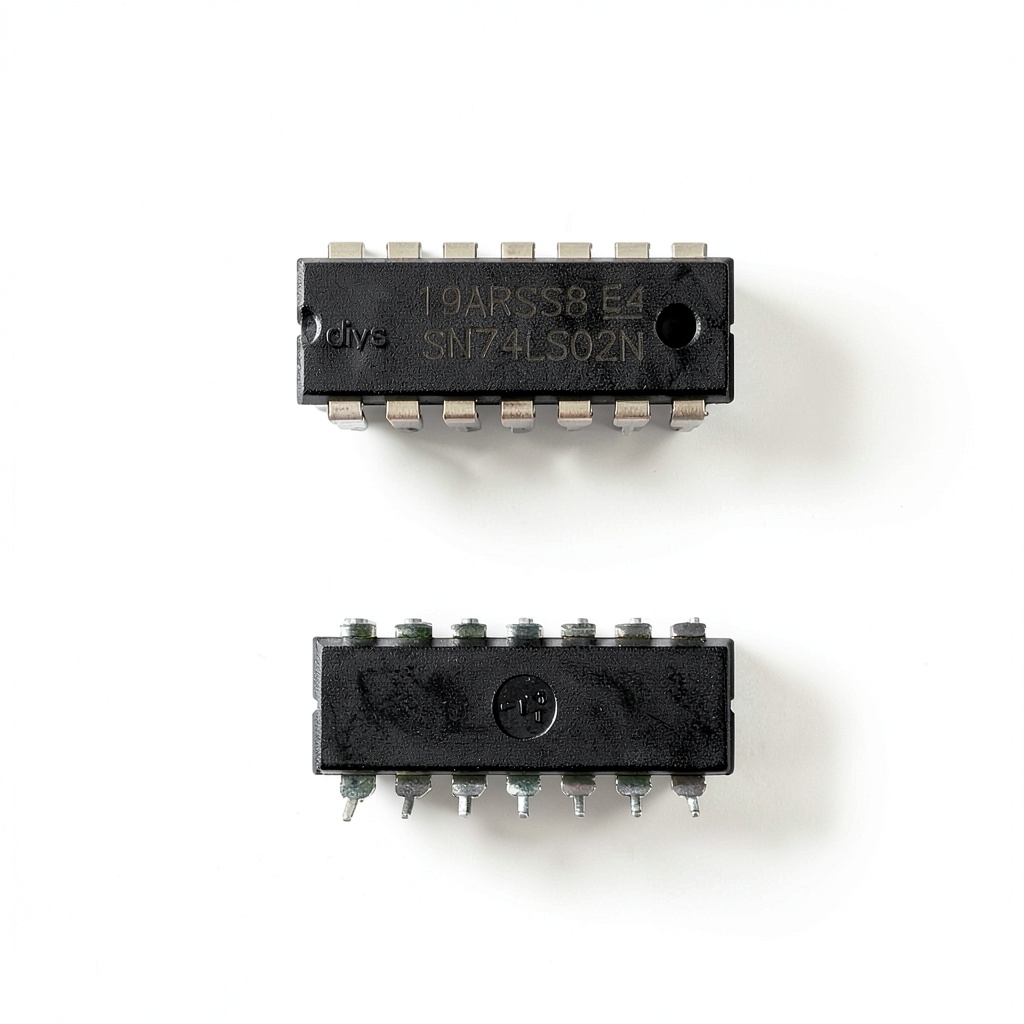

The 74LS02 quad 2‑input NOR gate IC is a staple component for digital designers who need reliable logic functions in a compact footprint. Manufactured by Todiys, each chip is housed in a standard DIP‑14 package measuring 0.75 x 0.34 x 0.28 inches and weighing only 0.35 ounces, making it easy to integrate onto breadboards or printed circuit boards. The device belongs to the 74LS family, offering low‑power Schottky TTL characteristics that ensure fast switching times while keeping power consumption minimal. With a guaranteed operating temperature range from -55°C to 125°C, the IC delivers consistent performance in both laboratory and field environments.
The 30‑piece pack provides ample inventory for development teams, educational labs, and repair technicians. Each unit is brand‑new, free from manufacturer discontinuation, and complies with the original specifications of part numbers 74LS02, SN74LS02, SN74LS02N, HD74LS02P, and DM74LS02N. The chips are tested for pin integrity, logical correctness, and electrical parameters, ensuring that every gate functions as a true NOR gate with the expected truth table. This reliability reduces the risk of unexpected failures during critical testing phases.
Beyond the core logic function, the IC’s internal architecture includes built‑in protection diodes and a robust input structure that tolerates modest over‑voltage conditions. The device’s low output saturation voltage makes it suitable for interfacing with other low‑power logic families, while its high noise immunity helps maintain signal integrity in noisy environments. The package’s clear silk‑screen labeling simplifies identification, allowing engineers to quickly verify pin assignments during assembly or troubleshooting.
Usage
The 74LS02 is ideal for a wide range of applications, from simple educational projects to complex industrial control systems. Hobbyists building microcontroller‑based prototypes often use the NOR gate to create custom logic functions, debounce switches, or generate timing signals. In professional settings, the IC serves as a building block for arithmetic units, state machines, and combinational logic circuits within larger digital systems. Its low power draw makes it suitable for battery‑operated devices, while the robust temperature tolerance supports deployment in automotive or aerospace environments where temperature fluctuations are common.
Because the chip is supplied in a DIP‑14 format, it can be easily inserted into standard sockets, facilitating rapid prototyping and easy replacement. Engineers working on PCB designs can rely on the well‑documented pinout to create compact, multi‑gate modules, reducing board space and component count. The 30‑piece quantity ensures that developers have enough parts for iterative testing, design verification, and final production runs without the need for frequent re‑ordering.
Why Choose Us
Todiys is recognized for delivering high‑quality semiconductor components that meet stringent industry standards. Our 74LS02 ICs undergo rigorous quality control processes, including functional testing at both wafer and final‑product stages. This commitment to quality translates into lower failure rates and longer product lifespans for our customers. Additionally, we provide detailed datasheets and reference designs that help engineers accelerate development cycles and reduce time‑to‑market.
Choosing our 30‑piece pack means you receive a consistent supply of verified parts, eliminating the uncertainty that can arise from mixed‑batch inventories. Our packaging includes clear labeling and protective anti‑static bags to safeguard the chips during shipping and handling. While we do not offer technical support for this specific component, our comprehensive online resources and community forums provide valuable guidance for common usage scenarios and troubleshooting tips.
Key Features
- Reliable low‑power Schottky TTL performance for fast switching and minimal heat generation.
- Compact DIP‑14 package enables easy insertion into breadboards, sockets, and PCBs.
- Wide operating temperature range (-55°C to 125°C) suitable for harsh environments.
- Robust internal protection and low output saturation for versatile interfacing.
- Comprehensive after‑sales support with detailed datasheets and community resources.
FAQ
What is the difference between the 74LS02 and other NOR gate families?
The 74LS02 belongs to the Low‑Power Schottky (LS) family, offering faster switching speeds and lower power consumption compared to standard TTL NOR gates. It also provides better noise immunity and a wider temperature range, making it suitable for both low‑cost and high‑reliability applications.
Can I use the 74LS02 in a 5V microcontroller circuit?
Yes. The 74LS02 operates correctly with a 5V supply, matching the logic levels of most microcontrollers. Its low output saturation voltage ensures that the logic high level is well within the acceptable range for downstream TTL or CMOS inputs.
Is the DIP‑14 package compatible with surface‑mount technology?
The DIP‑14 package is designed for through‑hole mounting, but it can be used on a PCB that also contains surface‑mount components. For pure surface‑mount designs, a compatible SMD version of the NOR gate would be more appropriate.
How many gates are included in each IC?
Each 74LS02 IC contains four independent 2‑input NOR gates, providing eight inputs and four outputs in a single package. This density helps reduce board space and component count in multi‑gate designs.
What should I do if I receive a defective chip?
If a chip appears defective, verify the power supply and connections first. Should the issue persist, contact the seller with the order details for a replacement or refund, following the standard return policy.
