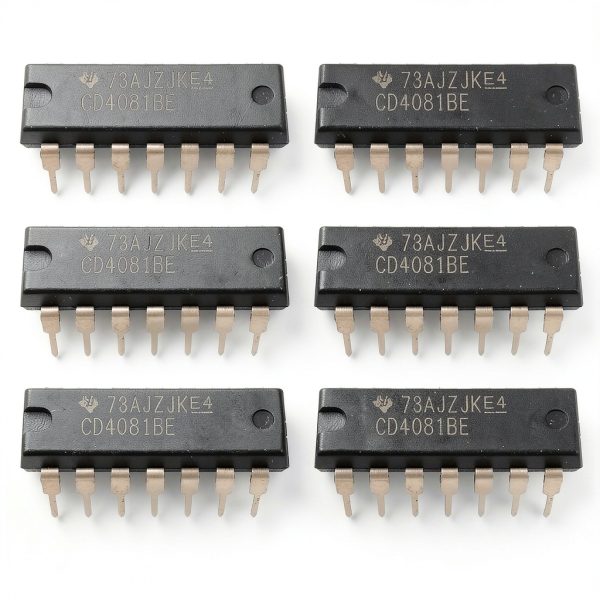

CD4081BE Quad 2-Input AND Gate by Jekewin 6.8mA Output 3‑18V Supply

Description

Product Overview

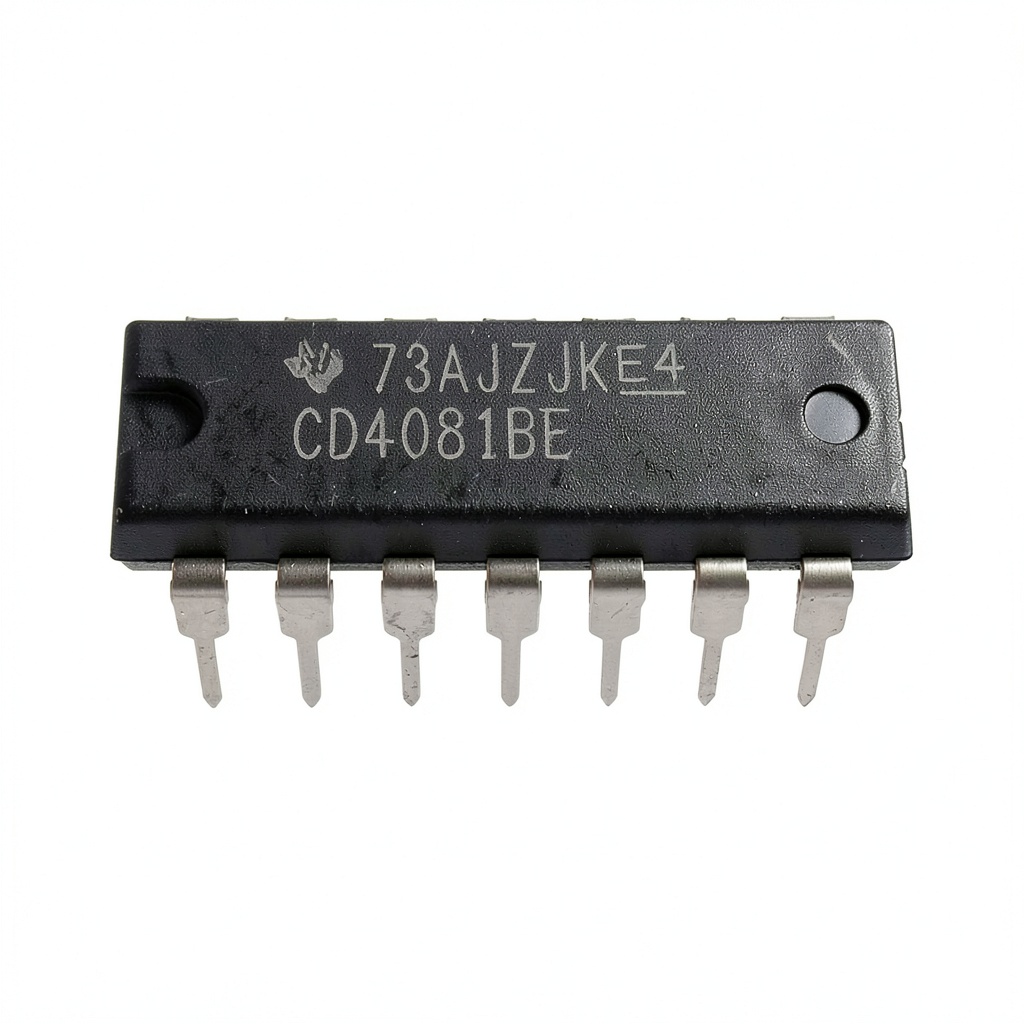

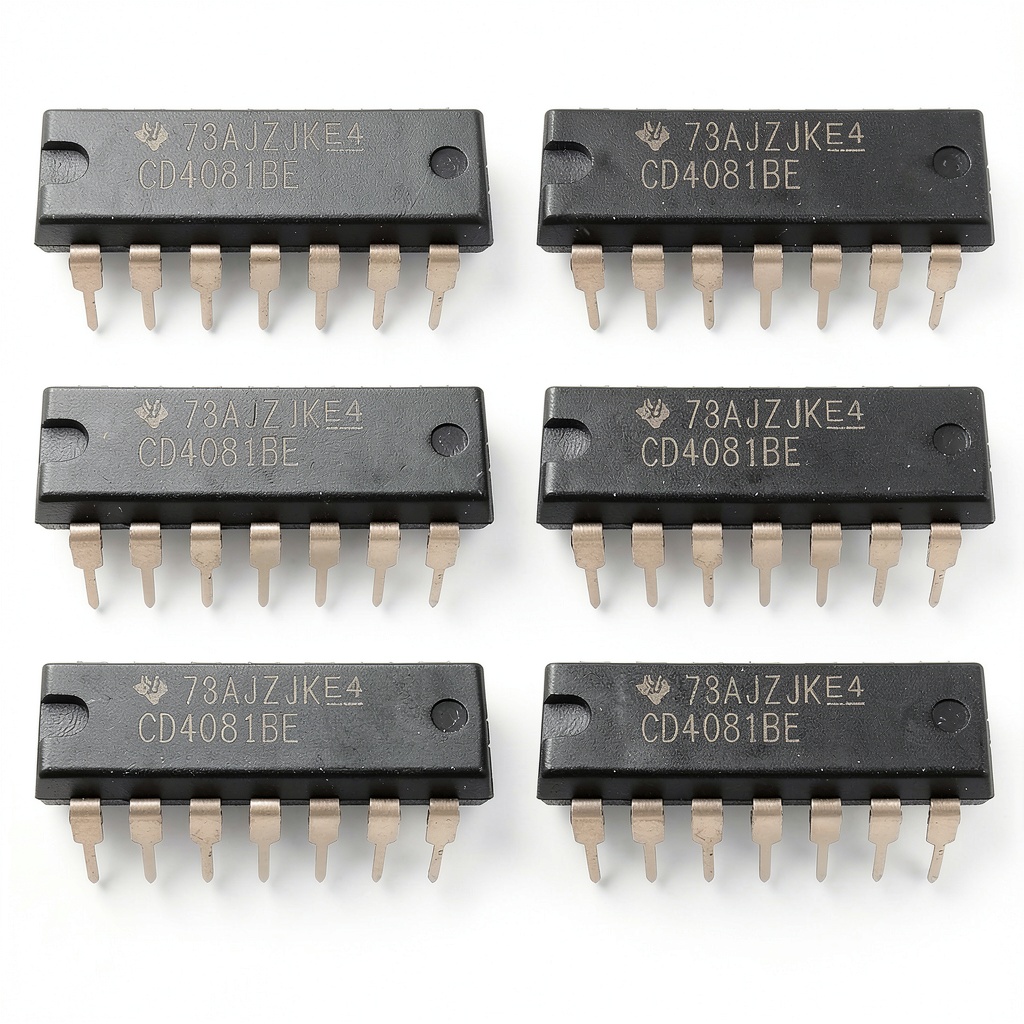

The CD4081BE is a quad 2‑input AND gate from Jekewin, part of the trusted CD4000B family. Designed for versatile digital logic applications, this DIP‑14 package delivers a maximum output current of 6.8 mA per gate and operates across a wide supply voltage range of 3 V to 18 V. Its robust construction ensures stable performance in harsh industrial environments, while the compact 1.5 × 1 × 1.5 inches footprint makes it ideal for dense circuit boards. The device is not discontinued, offering long‑term availability for engineers and hobbyists alike. With a low price point of $8.00, it provides excellent value for both prototype development and production runs.

Usage

Designed for a broad spectrum of applications, the CD4081BE excels in industrial control systems, automation equipment, and educational laboratory kits. Its reliable AND logic is perfect for creating combinational circuits, timing generators, and signal conditioning modules. The wide voltage tolerance allows it to be used in battery‑powered devices as well as mains‑connected equipment. Engineers often integrate this gate into PLC interfaces, sensor data processing units, and microcontroller peripheral expansions. Hobbyists appreciate its ease of use in breadboard prototypes, where the DIP‑14 pins fit standard sockets without the need for additional adapters.

Why Choose Us

Choosing Jekewin’s CD4081BE means selecting a component backed by rigorous quality assurance and a commitment to customer satisfaction. Each unit undergoes thorough testing to meet industry standards for electrical performance and durability. Our responsive support team is ready to assist with technical inquiries, ensuring seamless integration into your designs. Additionally, we offer a hassle‑free refund policy for any product that does not meet your expectations, reinforcing our confidence in the product’s reliability.

Key Features

• Four independent 2‑input AND gates in a single compact package
• Wide supply voltage range (3 V‑18 V) for flexible power options
• High output current capability of 6.8 mA per gate for strong signal drive
• Robust DIP‑14 form factor for easy insertion into standard sockets
• Dedicated after‑sales support and a no‑questions‑asked refund guarantee

FAQ

What is the maximum input voltage for the CD4081BE?

The device can safely handle input voltages up to the supplied VDD, which ranges from 3 V to 18 V.

Can the CD4081BE be used in low‑power battery applications?

Yes, its low minimum supply voltage of 3 V makes it suitable for battery‑operated circuits where power efficiency is important.

Is the CD4081BE compatible with standard 0.1 inches breadboard layouts?

Absolutely. The DIP‑14 package aligns with the 0.1 inches (2.54 mm) pitch used in most breadboards and prototyping boards.

How does the output current of 6.8 mA affect my circuit design?

The higher output current allows the gate to drive heavier loads directly, reducing the need for additional driver stages in many applications.

What warranty or support does Jekewin provide for this product?

Jekewin offers a 100 % brand‑new guarantee with a no‑hassle refund policy if the product does not meet your expectations, along with technical support for integration questions.
